Construction projects are rarely linear. From adapting to evolving designs to managing on-site complexities, success depends on clear, precise, and efficient planning. One technology that is rapidly transforming construction workflows is Point Cloud to CAD services.

These services bridge the gap between raw, unstructured spatial data and highly detailed CAD models, enabling professionals like construction managers, architects, and engineers to plan and execute projects with greater accuracy.

This blog unpacks what Point Cloud to CAD services are, their benefits for construction projects, and how to choose the right service provider. If you’re looking to save time, reduce errors, and collaborate more effectively, read on.

What Are Point Clouds?

The Basics of Point Clouds

A Point Cloud is a collection of data points representing the external surface of an object or environment. These points are generated through precise spatial measurements captured during a 3D laser scanning or photogrammetry process. Point clouds provide a detailed, three-dimensional representation of physical spaces, making them an invaluable tool for construction, architecture, and engineering.

How Point Clouds Are Created

Point clouds are generated using cutting-edge technology such as:

• 3D Laser Scanners (LiDAR, Terrestrial Laser Scanning): These devices use lasers to measure distances between the scanner and surfaces, capturing millions of points in just seconds.

• Photogrammetry (Drone-Based or Camera-Based Techniques): Using overlapping images of a structure or environment, photogrammetry software identifies key points and simulates them as 3D coordinates.

Once captured, the raw data forms what we call a "point cloud," which contains millions—even billions–of data points. While these densely packed points are useful, they need to be processed further for practical application in construction projects. This is where Point Cloud to CAD conversion comes in.

How Do Point Cloud to CAD Services Streamline Construction?

Point Cloud to CAD services take raw 3D scan data and convert it into Computer-Aided Design (CAD) models, which are easier to interpret, modify, and integrate into existing workflows. Here's how this process can benefit construction projects:

1. Enhanced Accuracy in Planning and Design

Point clouds create highly precise models, down to millimeter-level tolerances. This is crucial for construction projects where minor inaccuracies can lead to costly errors. CAD models derived from point clouds remove ambiguities, ensuring designs are based on real-world conditions.

Example:

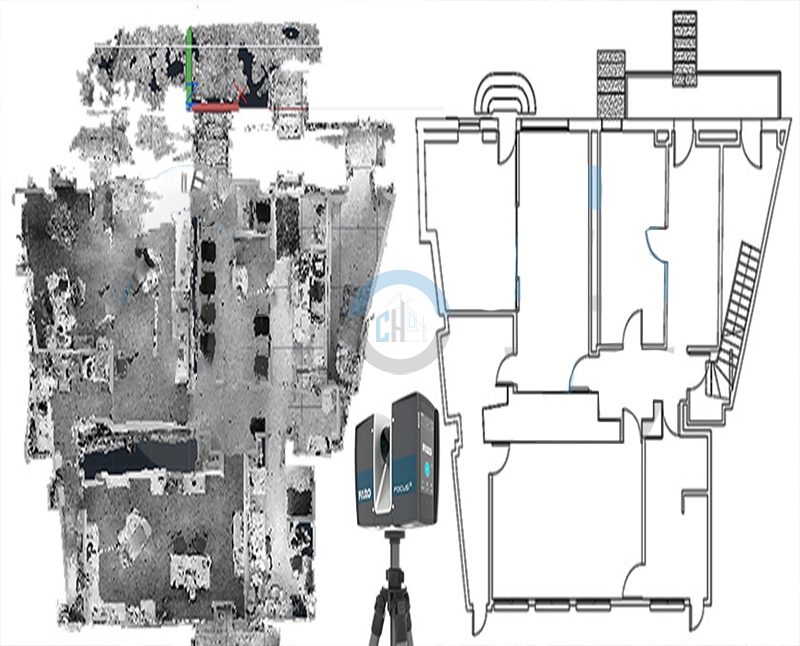

Imagine you're renovating an office building where old blueprints don't reflect current layouts. A point cloud scan captures the "as-built" environment, and CAD conversion provides architects with updated, precise floor plans before any construction begins.

2. Improved Collaboration Among Teams

Construction managers, architects, and engineers often rely on shared blueprints or BIM (Building Information Modeling) files. Point Cloud to CAD services integrate with platforms like Autodesk Revit or AutoCAD, making it easy to share accurate models among different stakeholders in real time. Whether it’s designing complex HVAC systems or verifying structure tolerances, everyone benefits from a unified understanding of the project.

3. Time and Cost Savings

By digitizing site measurements and converting them into editable CAD files, you eliminate the need for repeated physical site visits. This accelerates decision-making and reduces labor costs associated with traditional surveying methods.

Fun Fact:

Did you know that construction projects using Point Cloud data are completed 30% faster on average compared to those relying on manual measurements?

4. Seamless Retrofitting and Renovations

For projects involving existing structures, accurate documentation is paramount. Point Cloud to CAD services enable construction teams to create “as-built” models, which form the baseline for retrofits and renovations.

5. Risk Mitigation

Detailed models that reflect real-world conditions allow engineers and architects to anticipate potential challenges (e.g., clashes in structural elements). This reduces rework and ensures compliance with safety regulations.

How to Choose a Point Cloud to CAD Service Provider

To achieve optimal outcomes, choosing the right Point Cloud to CAD service provider is crucial. Here are key things to consider:

1. Experience in the Construction Industry

Partner with providers who have proven expertise in handling construction-specific CAD conversions. Ask for examples of past projects that align with yours.

2. Accuracy and Detail Levels

Not all CAD conversions are created equal. Ensure the provider delivers the level of detail and accuracy required for your project. For instance:

• Structural projects may need highly detailed rebar layouts.

• Interior renovations might prioritize wall positioning and window alignment.

3. Turnaround Times

Speed matters in construction. Choose a service provider capable of quick turnarounds without compromising accuracy. Ask about average delivery times for similar-sized projects.

4. Compatibility with Your Workflow

Ensure that the CAD models provided are compatible with your existing software. Most providers can integrate models into AutoCAD, Revit, or similar programs.

5. Scalability

If your construction project spans multiple phases or sites, find a provider capable of handling scalability. They should be equipped to process multiple scans and deliver cohesive outputs.

Questions to Ask Your Provider:

• What level of accuracy can we expect in the final CAD model?

• Are your services compliant with industry standards like ISO 19650 for BIM workflows?

• Do you offer additional support (e.g., file revisions or training)?

 The Future of Construction with Point Cloud to CAD Services

The adoption of Scan to CAD services is growing rapidly, and for good reason. Advances in AI, faster-scanning technologies, and improved data integration are making it easier than ever for construction professionals to work smarter, not harder. These services are no longer a luxury; they are quickly becoming indispensable for streamlining modern construction projects, delivering greater efficiency, and achieving higher-quality outcomes.

If you’re ready to elevate your construction project, consider leveraging the power of Point Cloud to CAD services today. Accurate, efficient, and collaborative workflows await professionals who are ready to innovate.
