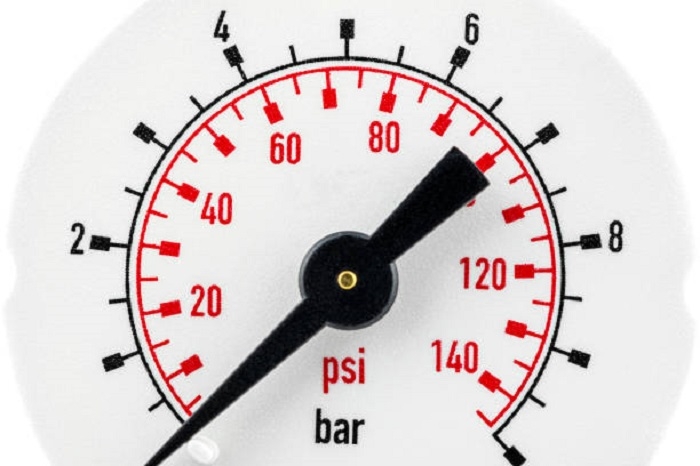

A Bourdon Tube Pressure Gauge is a widely used instrument for measuring pressure in industrial, commercial, and laboratory applications. Known for its mechanical simplicity and reliability, it has been in service for over a century. These gauges operate through the elastic deformation of a curved tube that straightens under pressure, moving a pointer across a calibrated dial. While the principle is straightforward, the durability of a Bourdon Tube Pressure Gauge under harsh conditions is critical for accurate measurement and safety in demanding environments. Harsh conditions include high pressure, extreme temperatures, vibration, corrosive media, and mechanical shocks. Understanding how Bourdon tube gauges withstand these conditions is essential for engineers, operators, and maintenance personnel.

The performance of a Bourdon Tube Pressure Gauge in adverse environments depends on material selection, design configuration, installation, and maintenance practices. These factors determine the gauge's lifespan, accuracy, and resistance to damage. This article explores the durability aspects of Bourdon Tube Pressure Gauges under challenging conditions, examining their mechanical strengths, limitations, and practical considerations.

Mechanical Durability of Bourdon Tube Pressure Gauges

Structural Strength

The core element of a Bourdon Tube Pressure Gauge is the curved tube, usually made of materials such as stainless steel, phosphor bronze, or beryllium copper. These metals provide elasticity, corrosion resistance, and fatigue strength. When exposed to high pressure, the tube experiences elastic deformation and returns to its original shape once the pressure is relieved.

The mechanical design ensures that the tube does not yield under normal operating pressures. Many gauges are designed with safety margins of up to 25 percent above the maximum rated pressure. This margin helps prevent permanent deformation or rupture in industrial applications. Engineers often choose tubes based on both pressure range and environmental factors to maximize durability.

Resistance to Vibration and Mechanical Shock

Bourdon Tube Pressure Gauges are inherently sensitive to vibration because the mechanical linkage and moving parts can transmit shock to the pointer and tube. To improve durability in high-vibration environments, manufacturers incorporate features such as solid front housings, internal damping fluids, and robust pointer mechanisms.

In applications with frequent mechanical shock, using a liquid-filled Bourdon Tube Pressure Gauge increases resilience. The filling fluid dampens vibrations, reduces pointer oscillation, and mitigates wear on the mechanical components. Proper mounting and securing of the gauge also enhance its ability to withstand mechanical stress.

Environmental Resistance

Temperature Extremes

Bourdon Tube Pressure Gauges must endure wide temperature ranges depending on the process environment. High temperatures can soften the tube material, alter its elasticity, and affect the accuracy of readings. Conversely, extremely low temperatures may cause brittleness or reduce the responsiveness of the gauge.

Manufacturers address temperature-related durability by selecting appropriate alloys and using protective casings. Liquid filling, such as glycerin or silicone, also stabilizes the gauge by buffering thermal fluctuations. Some designs include bimetallic compensators to adjust for thermal expansion of the tube, ensuring consistent performance under temperature extremes.

Corrosive Media

When exposed to corrosive gases, liquids, or chemicals, the Bourdon tube can deteriorate over time, compromising durability. Stainless steel tubes are often chosen for corrosive applications due to their resistance to oxidation and chemical attack. For highly aggressive media, specialized coatings or Hastelloy tubes provide additional protection.

The gauge housing can also be constructed with corrosion-resistant materials such as aluminum or stainless steel. Proper sealing prevents ingress of dust, moisture, or corrosive vapors, which can damage the internal mechanism and reduce operational life.

Operational Factors Affecting Durability

Overpressure Protection

One of the primary threats to a Bourdon Tube Pressure Gauge is exposure to pressures above its rated range. Repeated overpressure can cause permanent tube deformation, loss of accuracy, or mechanical failure. Many gauges include overpressure stops or restrictors to limit the movement of the pointer and tube, enhancing durability in extreme pressure scenarios.

Operators must ensure that gauges are selected for the specific pressure range of the system and incorporate safety valves when necessary. Maintenance routines should include inspection for signs of tube fatigue or wear caused by transient overpressure events.

Maintenance and Calibration

Routine maintenance significantly influences the durability of a Bourdon Tube Pressure Gauge. Periodic calibration ensures that readings remain accurate and that the mechanical components function properly. Lubrication of moving parts, cleaning of the internal mechanism, and inspection for corrosion or mechanical damage prevent premature failure.

In harsh conditions, maintenance intervals may need to be shorter. Replacing worn or fatigued tubes, verifying fluid filling, and checking the housing integrity contribute to extending the service life of the gauge. Proper training of personnel in installation and maintenance practices further enhances durability.

Design Considerations for Harsh Environments

Material Selection

Material choice is crucial for the durability of Bourdon Tube Pressure Gauges. Stainless steel provides resistance to corrosion, high pressure, and temperature extremes. Phosphor bronze offers elasticity and moderate corrosion resistance. Beryllium copper combines flexibility with fatigue strength, suitable for dynamic pressure environments.

The selection of the housing, dial, and pointer materials also affects overall durability. Protective glass or polycarbonate covers prevent mechanical damage, while sealed housings resist contamination. Engineers must match materials to the environmental and operational conditions to ensure reliability.

Gauge Configuration

Special configurations, such as flush mounting, front flange, or case filling, improve resilience. Liquid-filled gauges are preferred in high-vibration or pulsating pressure environments. Overpressure protection, pulsation dampeners, and reinforced linkages reduce the risk of mechanical failure under extreme conditions. Proper orientation and installation prevent stress on the Bourdon tube and prolong the gauge’s service life.

Conclusion

A Bourdon Tube Pressure Gauge is highly durable when designed, installed, and maintained for harsh conditions. Its mechanical simplicity, robust materials, and protective features allow it to withstand high pressure, vibration, temperature extremes, and corrosive media. Overpressure protection, proper calibration, and material selection are critical to ensuring accuracy and longevity.

While no gauge is completely immune to damage under extreme circumstances, Bourdon Tube Pressure Gauges remain one of the most reliable instruments in industrial applications. By understanding their mechanical limits and environmental sensitivities, operators can optimize performance, minimize downtime, and maintain accurate pressure measurement even under challenging conditions. Proper selection, installation, and care make the Bourdon Tube Pressure Gauge a durable and dependable tool for high-stress industrial environments.
